BIDIRECTIONAL DC CONVERTER

Regenerative DC Converter - From 7.5 to 160kW

Download full catalogue

HIGHEST EFFICIENCY

Highest efficiency in the market both sourcing and regenerating energy.

REGENERATIVE TECHNOLOGY

Reduction of the consumed energy and the power required.

MADE IN EUROPE

Designed and manufactured in Europe complying with high quality standards.

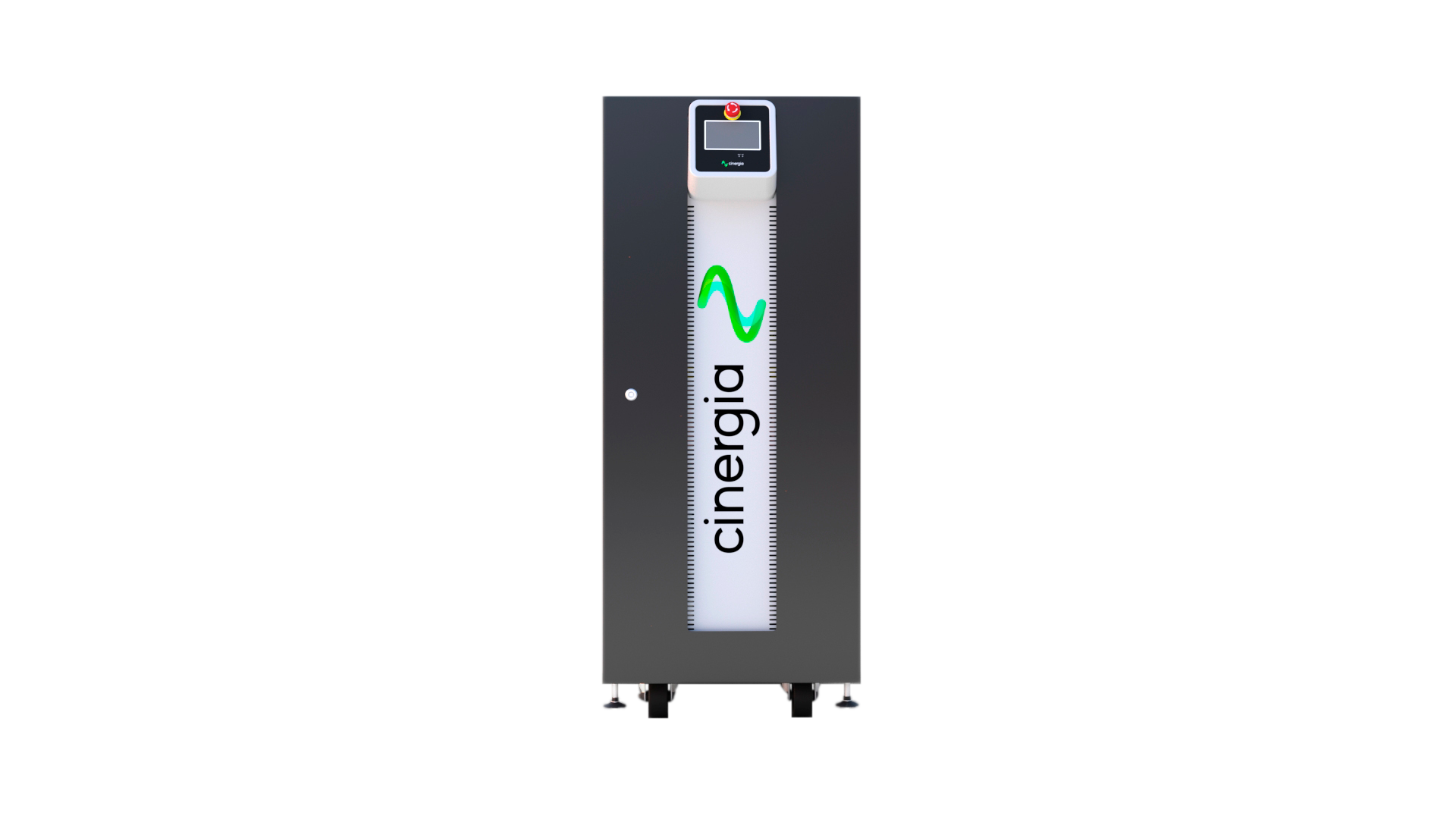

Bidirectional DC Conveter (B2C+)

B2C+ is CINERGIA’s solution for Regenerative and Bidirectional DC Test Platforms. The efficiency, multichannel flexibility and high-resolution and dynamics of this device make it convenient in multiple applications like: Renewable Energy Sources, Energy Storage Systems, Smart grids, Battery Testing and Characterization, Electrical Vehicles, EV Charging Infrastructures, Traction Converters, Power HiL and Aeronautic.

Characteristics

Bidirectional and Regenerative
2 Quadrants and 4 Quadrants Configuration
Clean grid current (THDi <3% and PF > 0.98)
Voltage Range (up to 800V and 1500V)

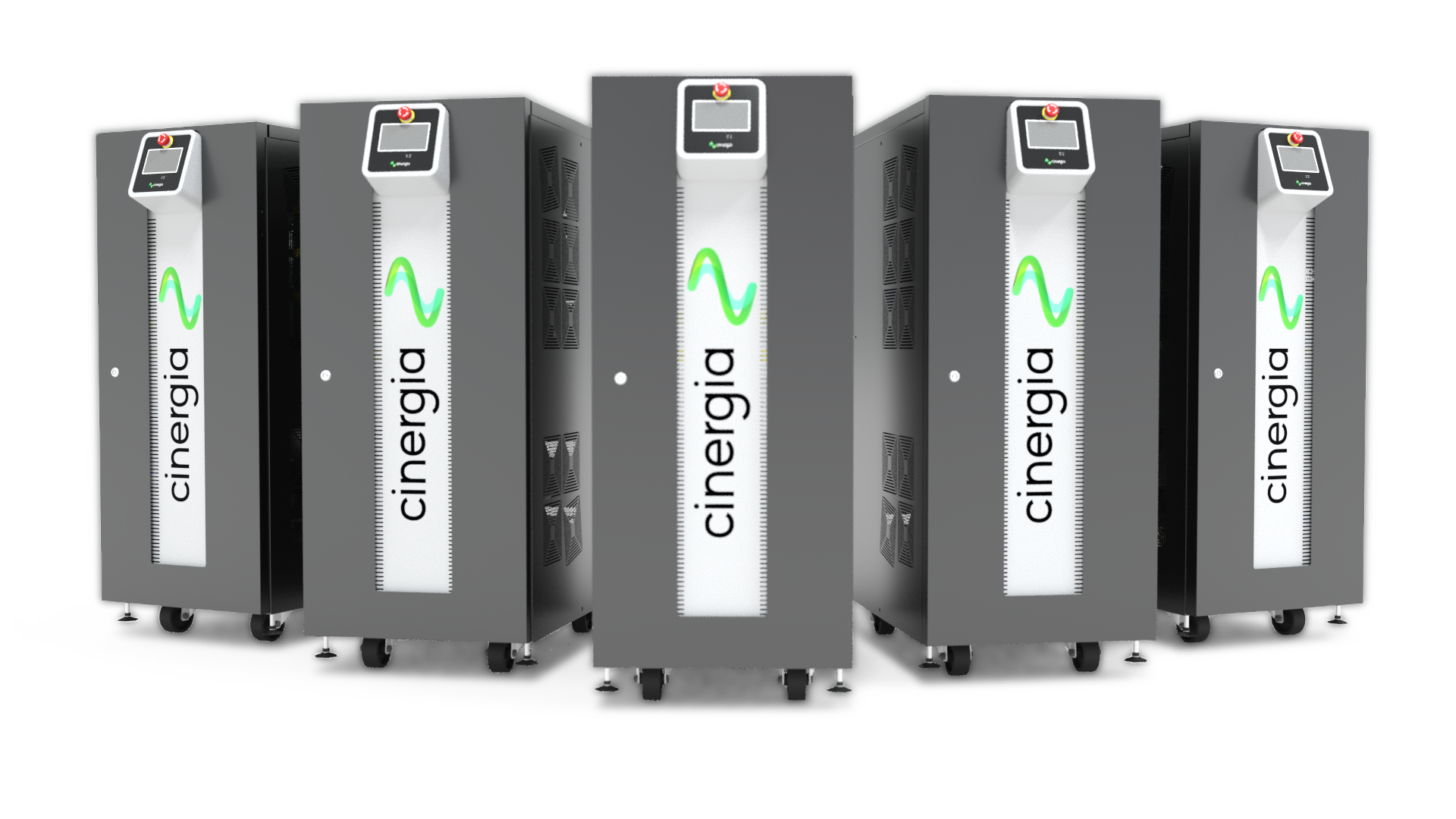

Parallelization of units to increase the power
Modbus/Ethernet Open protocol, Labview drivers
Battery Pack Testing
Pv Panel Emulation (option)
Battery Emulation (option)

Get the Datasheet

REGENERATIVE TECHNOLOGY

Like all CINERGIA products, our Electronic Loads allows the re-injection of the used power back to the grid, resulting in a reduction of both the consumed energy and the power required.

Electromobility applications

ON-BOARD CHARGER (OBC)

OBC stability testing with distorted grid conditions is paramount when developing systems intending to transform the EV into an active agent of the electrical grid. Versatility is essential in transitioning towards Vehicle to Grid (V2G) and Vehicle to Home (V2H) scenarios.

OFF-BOARD EV CHARGER

In compliance with IEC-61851, the four charging modes described by the international standard can be tested. Slow/fast AC or DC charging tests can be achieved with Cinergia working at either side of the EV charger (grid or load) in accordance with the defined communication capabilities of the system.

BATTERY PACK TESTING

Our Battery Test and Emulator Software is specifically designed for recreating different battery typologies (Lead-acid, Ni-Cd, Li-ion, NiMH), SOC plot and state tracking, as well as automated weeklong charge/discharge cycling.
